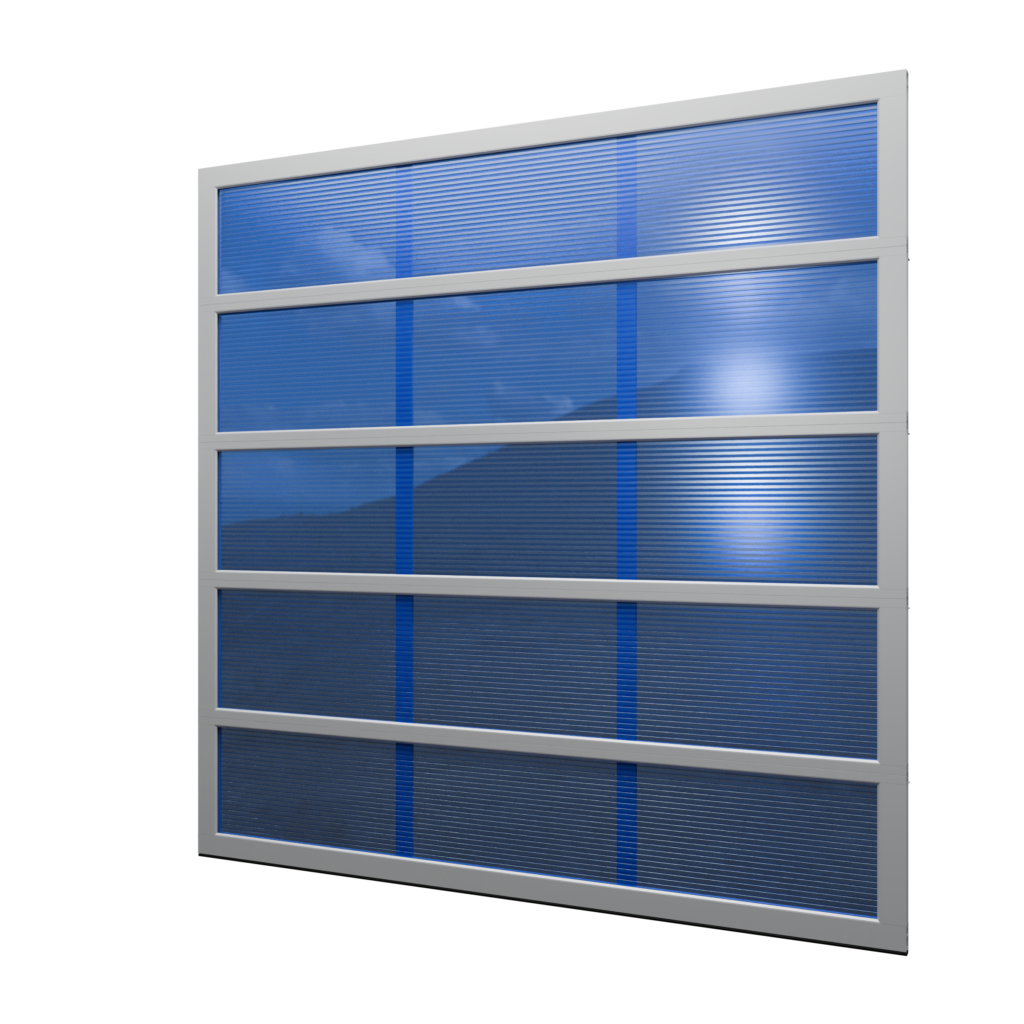

Model: SA6500 Hydr-o-guard

The Aluminum SA6500 commercial garage door features leading-edge design elements combined with extremely lightweight construction. Steel-Craft utilizes full-view sections with Thermoclear to deliver a clean look, maximum visibility and high light transmission.

Sizing options

Door Product SA6500
Thickness 1-3/4"
Door Width-2" Track 7'-20'
Standard Height-2" Track 6'-16’
Door Width-3" Track 7'-30'
Standard Height-3" Track 6'-28'

Colour options

For inquiries on Custom Powder-Coating please contact SC2.

Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact SC2 for colour samples.

Clear Anodized Aluminum
Acrynar White

Window Options

Thermoclear polycarbonate

Note: The glazing material (Thermoclear®) used is ideal for humid environments, however, it differs from glass in that it’s not sealed, therefore condensation may form in the cellular walls when interior/exterior temperatures are such that dew point temperatures are created (usually in periods of cooler weather). This condensation usually disappears when warmer weather returns.

All colours only available in Triple wall 16mm.

Clear Lexan
White Opal Lexan
Bronze Lexan
Charcoal Lexan
Blue Lexan
Green Lexan
Red Lexan

SA6500 Features

*New Design*


Re-designed to keep the weather out.
Note: SA6500 Aluminum rails will be used going forward on all Aluminum door styles.


  • Thickness: 1.8mm (0.071”) to 2.5mm (0.100”); 3.2mm (1/8”) or more at fastener locations.
  • Intermediate Stiles: located on interior face only. 1.6mm (0.063”) minimum and 4.8mm (0.189”) at fastener locations. Stile width 76mm (3.0”).
  • Top Rail: aluminum strut 38mm (1-1/2”) deep.

Insulated Aluminum panel

1.27 mm thick aluminum sheet material insulated and sealed to door frame.

Door Face Hardware

  • Graduated end hinges and centre hinges made from galvanized steel.
  • Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.


50 mm or 75 mm wide galvanized steel tracks.


  • Bottom weatherstripping: U-type arctic grade vinyl.
  • Jamb: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
  • Header: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
  • Section Interface: arctic grade vinyl bubble shaped weatherstrip at all section meeting rails in integral retainer.

Counterbalnce system

  • Class II oil tempered ASTM A229 wire, minimum 10,000 cycle torsion springs on continuous steel shaft.
  • Aircraft quality galvanized lift cables with a minimum safety factor of 5 to 1.


Interior mounted slide bolt suitable for pad locking.


Manual, Optional Hand chain hoist (3-1 ratio) or optional electric operator.
