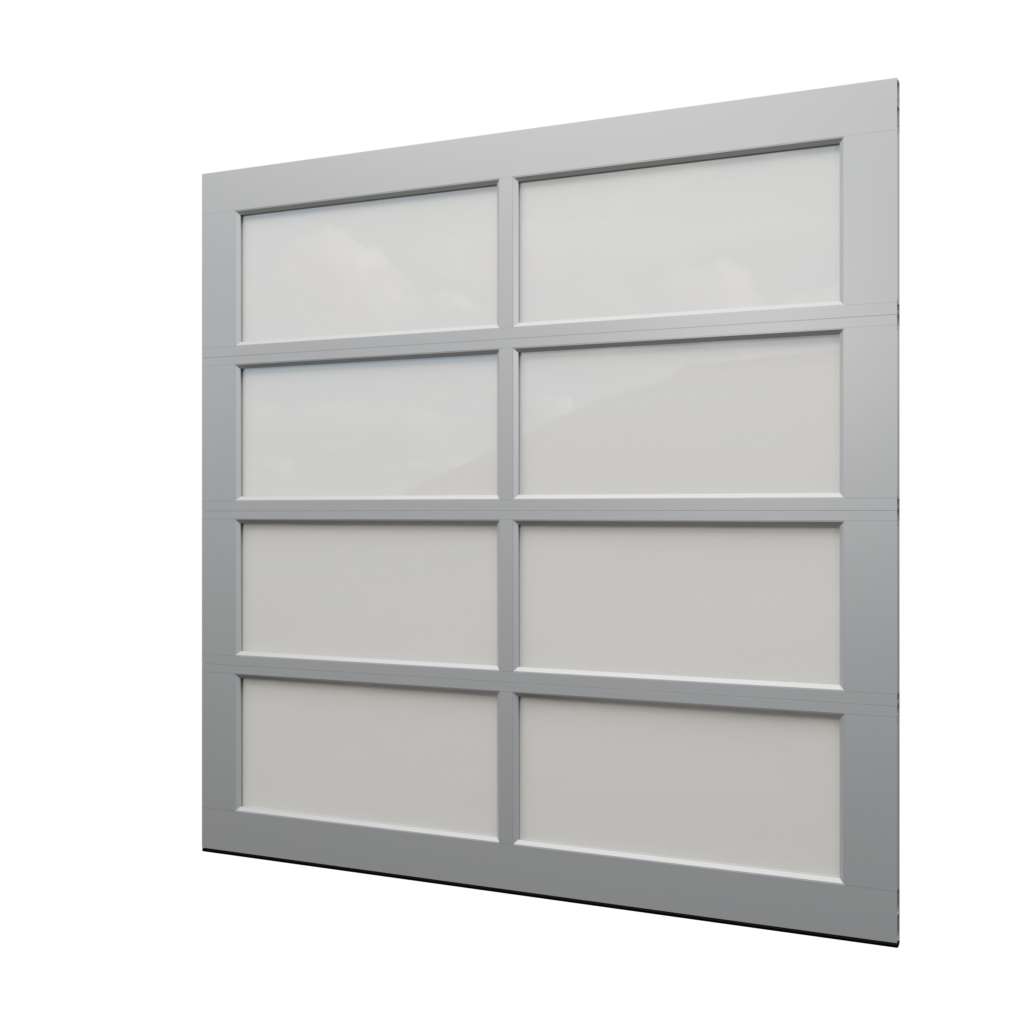

Esteem
Model: Hydr-o-guard
The Esteem garage door series offers reliable aluminum doors in wide variety of customizable colours, glass, and size options
Sizing options
| 4 Section - 2 Panel | 8'x7' | 8'x8' | 9'x7' | 8'x8' |
| 4 Section - 3 Panel | 10'x7' | 10'x8' | 12'x7' | 12'x8' |
| 4 Section - 4 Panel | 14'x7' | 14'x8' | 16'x7' | 16'x8' |
| 4 Section - 5 Panel | 18'x7' | 18'x8' | ||
| 5 Section - 2-5 Panel | 9' Height and 10' Height Available | |||
Colour options
For inquiries on Custom Powder-Coating please contact SC2.
Note: The accuracy of the colours displayed may vary depending on the settings of your monitor. To obtain an exact colour reference, please contact SC2.
Window Options
Plain Lite
Standard 4mm tempered single pane and 4mm tempered sealed units.
Please Note: We strongly advise our customers to order Sealed Units in regions with higher humidity.
Esteem Features
*New Design*
Hydr-O-Guard
Re-designed to keep the weather out.
Frames
- Thickness: 0.071″(1.8mm); 0.118″(3mm) at fastener.
- Standard Top/Bottom/End Stiles: 6-3/8″(162mm).
- Intermediate Stiles: 76mm/3.0″(76mm).
ALUMINUM INSERT PANEL
0.05”(1.27mm) thick aluminum sheet material insulated and sealed to door frame.
Door Face Hardware
- Graduated end hinges and centre hinges made from galvanized steel.
- Heavy duty rollers with heat-treated and outer races with 10 floating ball bearings.
Track
2”(50mm) or 3″(75mm)wide galvanized steel track.
Strutting
- Doors over 11 feet in width are reinforced with 16ga galvanized steel “Z” brace per section.
- Strutting required for doors wider than 11 feet (3,353mm).
Weatherstripping
- Bottom weatherstripping: U-type arctic grade vinyl.
- Jamb: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
- Header: quality factory finished metal with two-point flexible arctic grade vinyl weatherstrip.
